Load and force measuring cell stainless steel SAUTER CS 10-Y1
Load and force measuring cell stainless steel SAUTER CS 10-Y1
Load and force measuring cell stainless steel SAUTER CS 10-Y1

Load and force measuring cell stainless steel SAUTER CS 10-Y1

SAUTER
€345.00 (Save 10%)
€310.50
Tax excluded

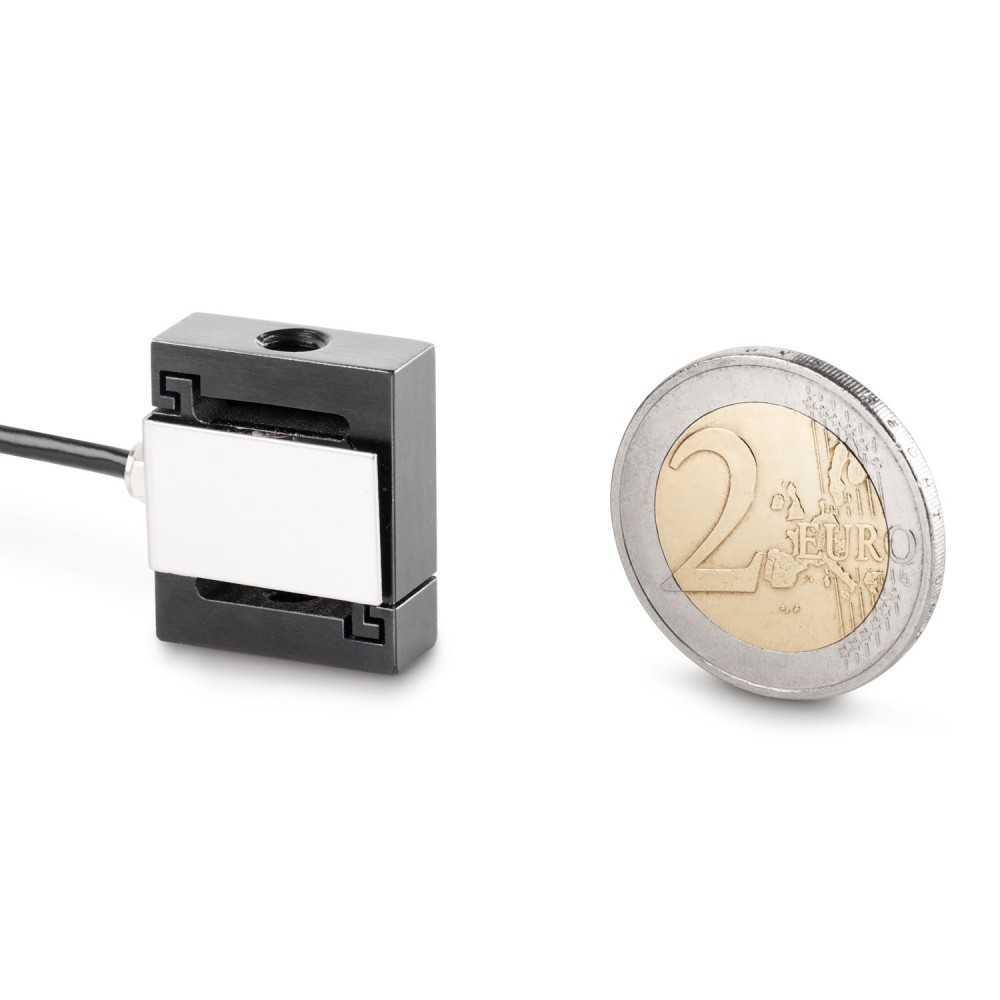

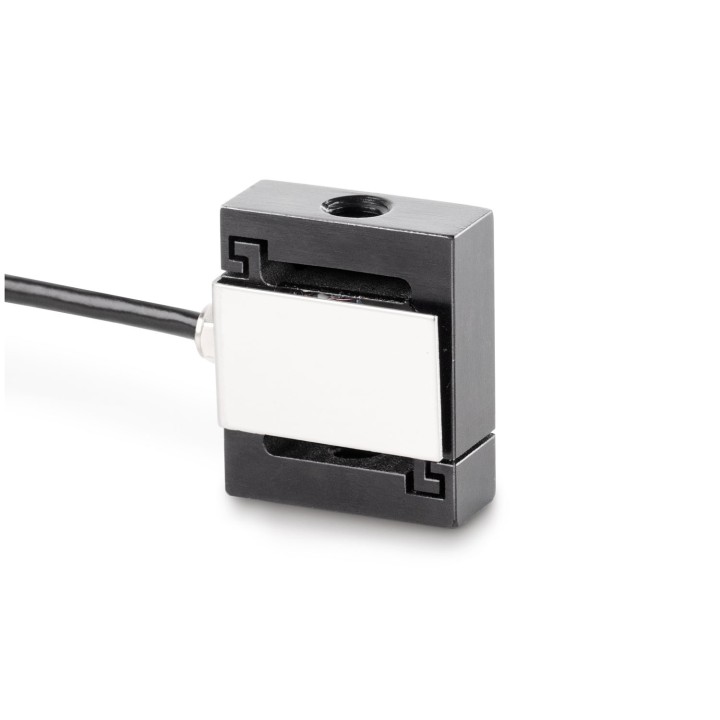

Miniature load and force measuring cell S shape made of stainless steel

Technical Data

Weighing capacity [Max]10 kg
Measuring range force [Max] (N)100 N
Design"S" shaped cell
Directions of forcetension, compression
Measuring applicationsforce, mass
Combined error0,1%
characteristic value - nominal2 mV/V
IP protection - complete deviceIP65
Materialsteel, stainless
Load cell connection4-wire

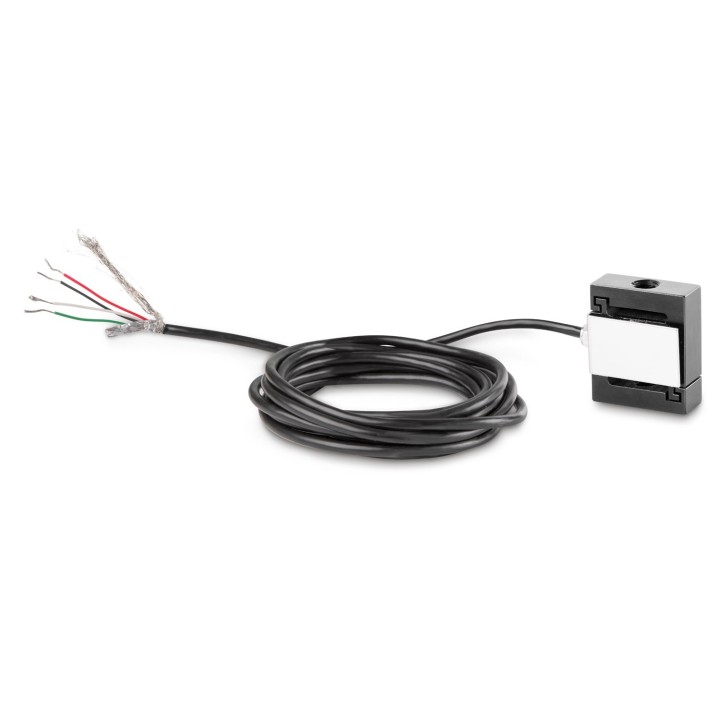

Cable length2 m
Mounting - force applicationThreaded hole M4
Mounting - force dissipationThreaded hole M4
in stock
Share

High precision (comprehensive error 0,1% F.S.)

RoHS compliant

Area of application: Tensile and compressive applications, mass and force measurement

Suitable for force test stands, hanging scales, silo scales and various other balances

  • Brand
  • Reference
    CS 10-Y1
  • EAN13
    4045761233102
