SAUTER DB 0.5-4 digital torquemeter 0,5 Nm

1,593.00 €Save 10%

1,770.00 €

Tax excluded

Convenient way to test the torque of tools

TECHNICAL DATA

Measuring range torque [Max] (Nm)	0,5 Nm
Readability torque [d] (Nm)	0,1 mNm
Tolerance (% of [Max])	0,5%
Units	Nm, kgf/cm, kgf/m, in/lbs, ft/lbs
Supported torque pickups	20 mm, 3/8 "
Overload protection (% of [Max])	120%
Memory function
Internal data memory: Number of individual values	500
Peak function
Limit-setting function
Internal measuring frequency	1000 Hz
Supplied power supply	Battery & Power supply
Battery / accumulator type	NiMH
Rechargeable battery operating time - backlight off	18 h
Auto-off interval(s) in battery mode/rechargeable battery mode	1 - 60 min
Interfaces	RS-232 standard, USB-Device
Display type	LCD graphic
Display resolution	128×64
Material housing	metal, lacquered
Dimension (W×D×H)	200×100×50 mm

100% buyer protection

Guaranteed with PayPal

100% secure shipping

Insured and with tracking

3 year guarantee

100% full processing

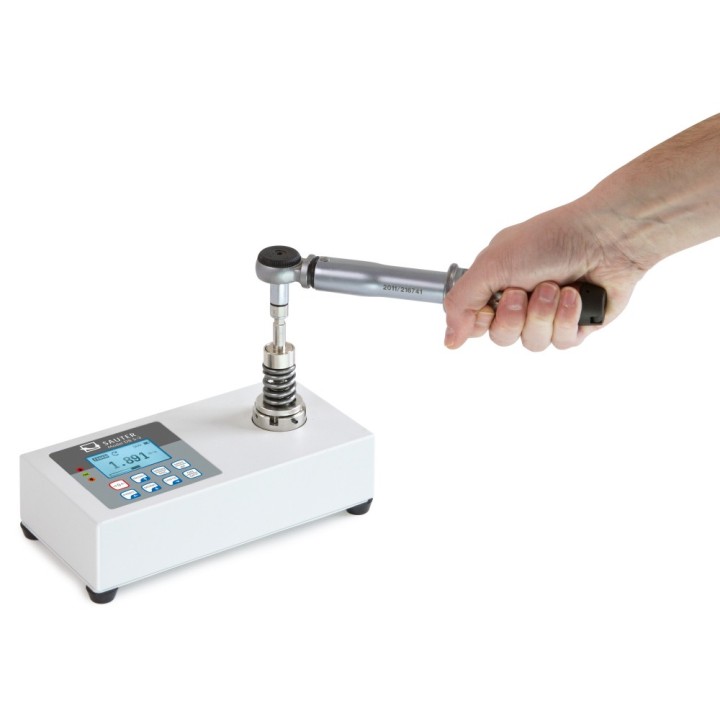

Particularly suitable for testing torque wrenches, electric hand screwdrivers and cordless screwdrivers

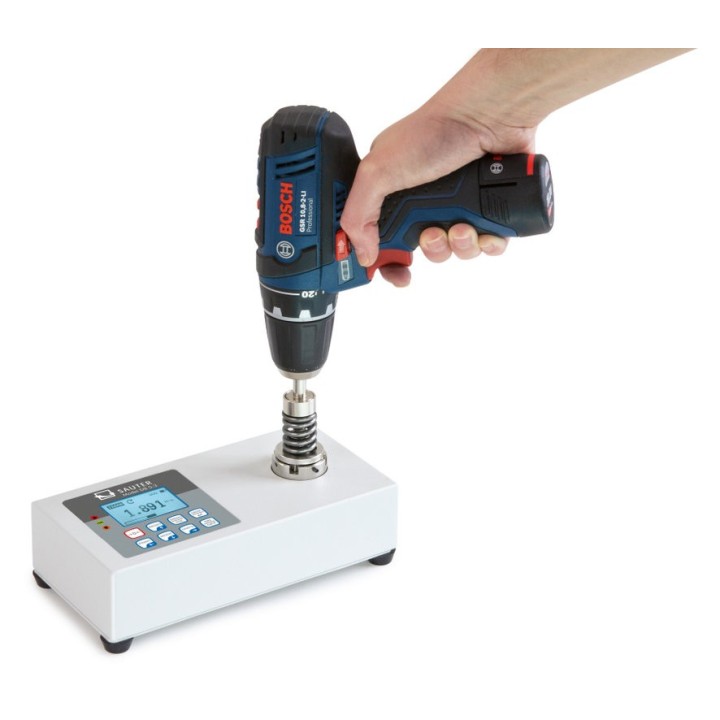

Screw joint simulator for dynamic testing of electric screwdrivers

Metal housing for durable use in harsh environmental conditions

Capacity display: A bar lights up to show how much of the measuring range is still available

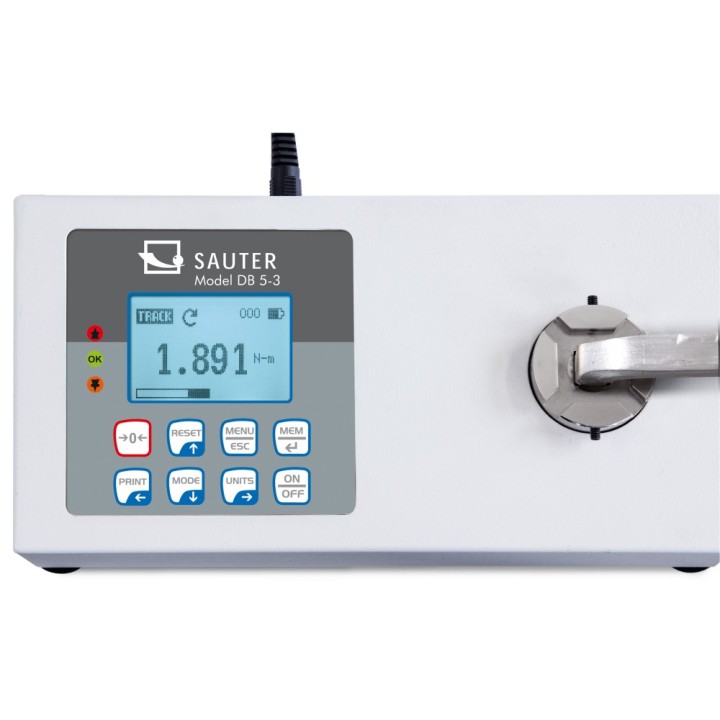

LCD graphics display with backlight

Rubber feet with anti-slip feature

Data interface USB and RS-232 included

Internal data memory saves up to 500 measurements. The memory contents can be transferred to the PC using optional software

Peak-Hold function to capture the peak value or Track function for continuous display of measurement

Can be used in both directions of rotation

Measuring with tolerance range (limit-setting function): Upper and lower limiting can be programmed individually. The process is supported by an audible and visual signal

AUTO-OFF function

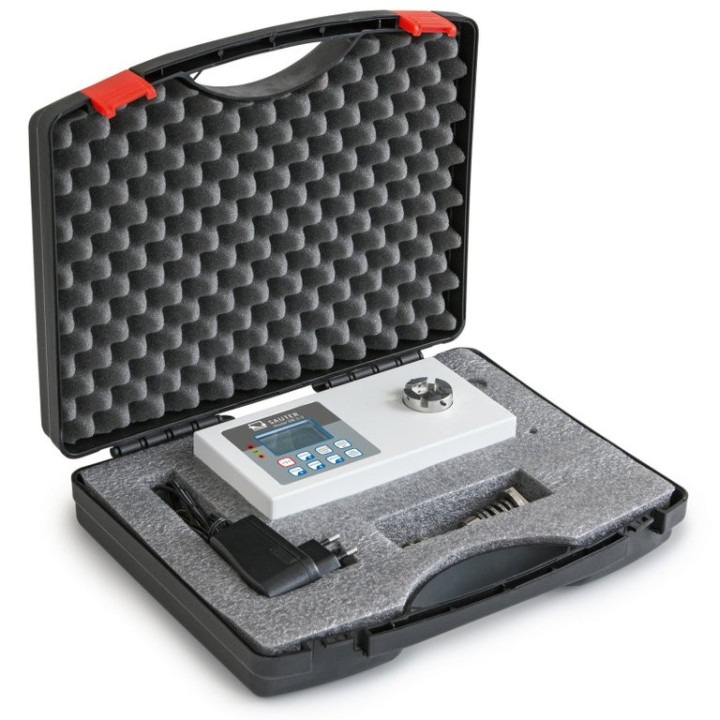

Scope of delivery: Torque pick-up, sturdy carry case

Reference DB 0.5-4
