SAUTER FH 100K force gauge with external load cell

Name: SAUTER FH 100K force gauge with external load cell
Brand: SAUTER
SKU: FH 100K
Price: 1755 EUR
Availability: InStock

Brand : SAUTER

Reference : FH 100K

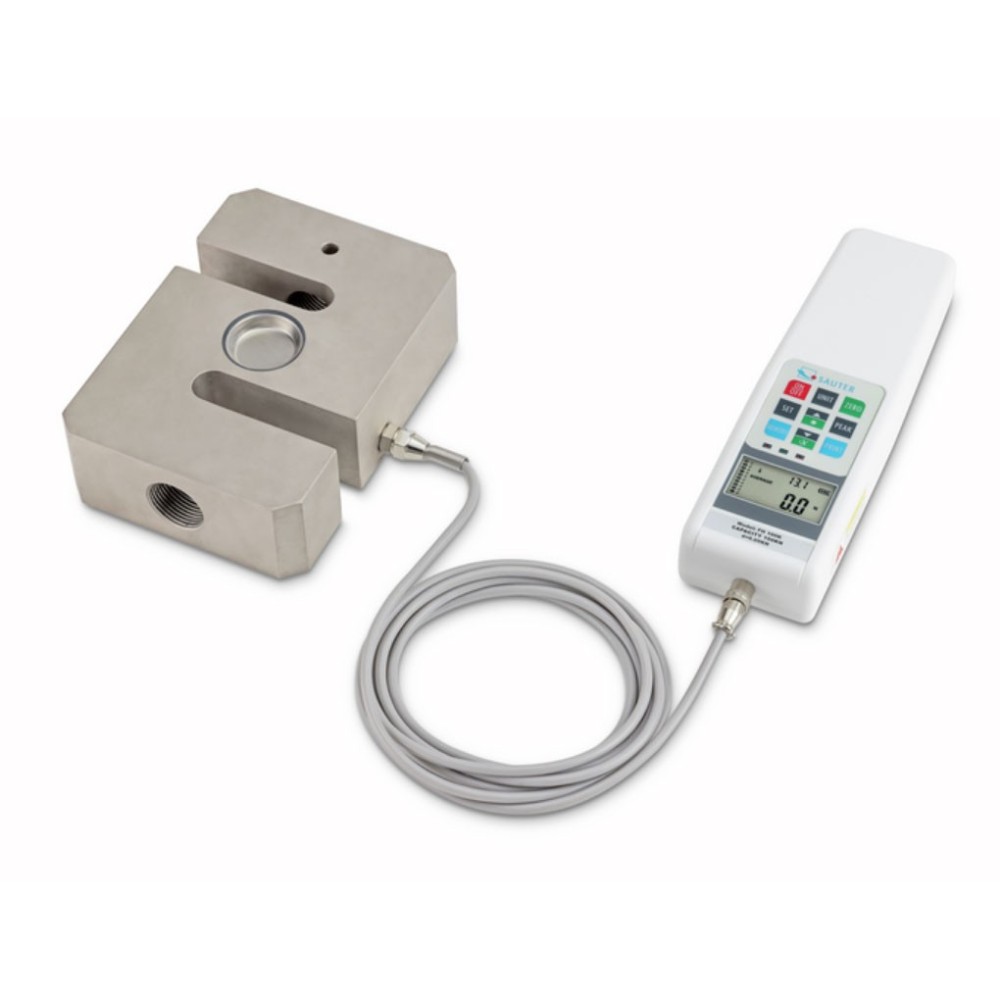

Universal digital force gauge for tensile and compressive force measurements with external load cell

Technical Data SAUTER FH 100K

Measuring range force [Max] (N)	100 kN
Readability force [d] (N)	50 N
Tolerance (% of [Max])	0,5%
Measuring head measuring frequency	2 kHz
Number of platforms / channels	1
Supplied power supply	Accu & Power supply
Rechargeable battery	8,4V / 1200mAh Ni-Hi
Memory function
Statistic function
Limit-setting function
Hold function
Peak function
Dimensions completely mounted (W×D×H)	230×66×36 mm
Interfaces	RS-232 standard
Cable length	3 m

Certificate : without Certificate

Hurry! only 5 items left in stock.

€1,755.00

€1,950.00

Save 10%

Tax excluded

Quantity

Add to Compare

Add to Wishlist

Guarantee safe checkout

Turnable display with backlight

NEW: USB interface for data transfer and power supply as standard

Data interface RS-232 as standard

Selectable measuring units: N, kN, kgf, tf

Peak-Hold function to capture the peak value or Track function for continuous display of measurement

Measuring with tolerance range (limit-setting function): Upper and lower limit adjustable, in pull and push direction. The process is supported by an audible and visual signal

Auto-Power-Off

Internal memory for up to 10 measurement values

Mini Statistics Kit: calculates the average result from up to 10 stored measured values, as well as min., max., n

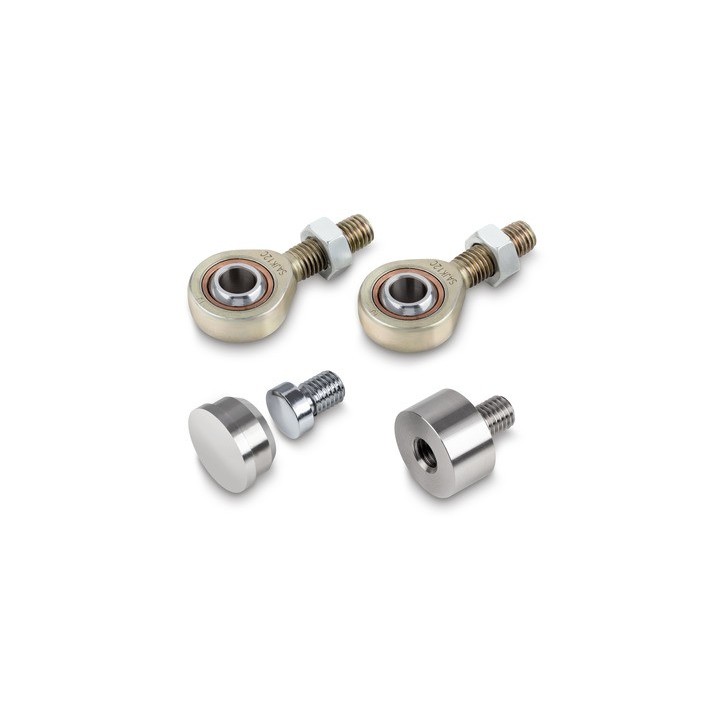

Tension loops and compression plates are included in delivery

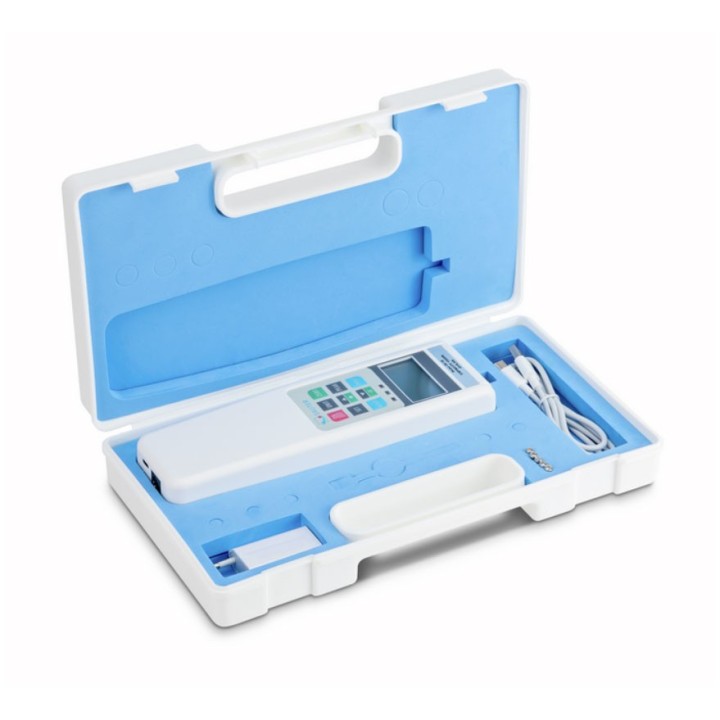

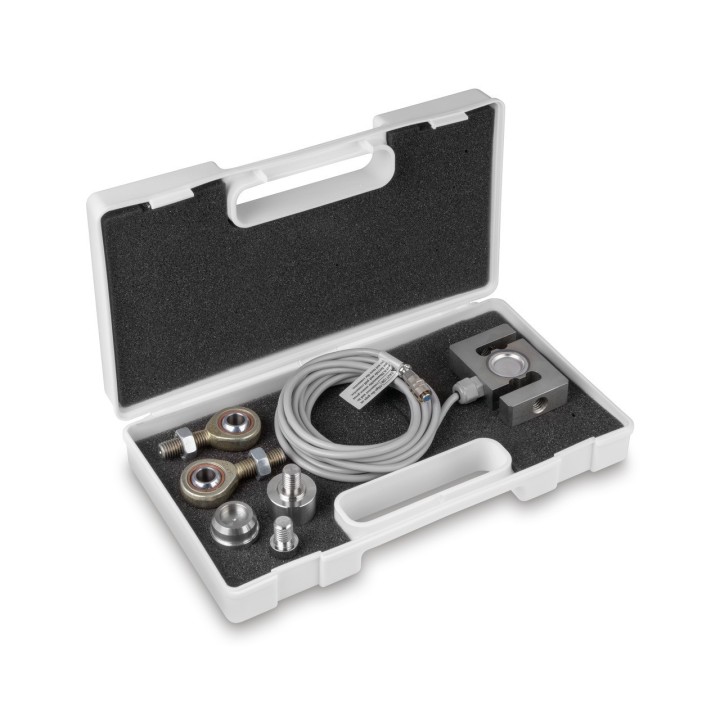

Delivered in a robust carrying case

Reference : FH 100K
