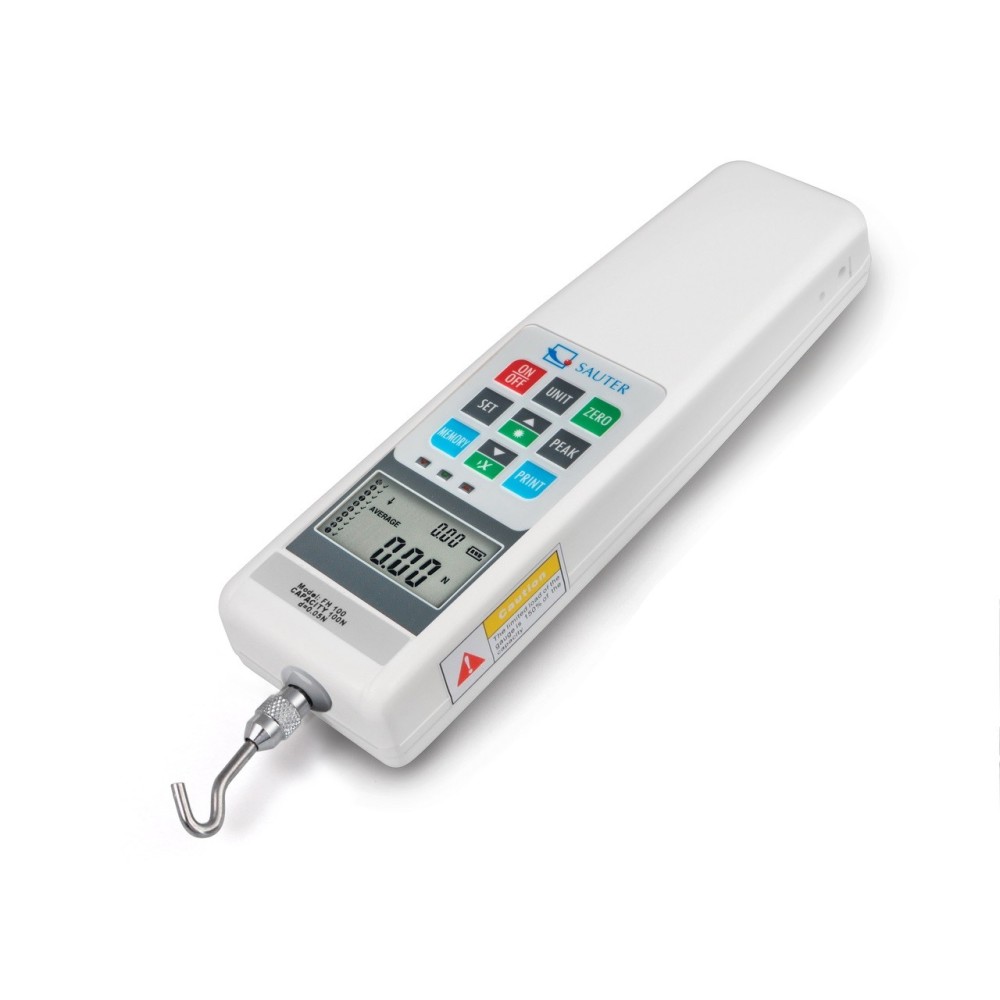

SAUTER FH 500 force gauge with integrated load cell

SAUTER FH 500 force gauge with integrated load cell

SAUTER
FH 500

Universal digital force gauge for tensile and compressive force measurements with integrated load cell

Technical Data SAUTER FH 500

Measuring range force [Max] (N) 500 N
Readability force [d] (N) 0,1 N
Tolerance (% of [Max]) 0,5%
Measuring head measuring frequency 2 kHz
Supplied power supply Accu & Power supply
Memory function
Statistic function
Limit-setting function
Hold function
Peak function
Material housing plastic
Dimensions completely mounted (W×D×H) 240×66×36 mm
Net weight approx. 0,60 kg
Interfaces RS-232 standard, USB-Device
Certificate : without Certificate
Hurry! only 5 items left in stock.
€531.00
€590.00
Save 10%
Tax excluded
Quantity

Add to Compare
Add to Wishlist

Turnable display with backlight

Can be mounted on all SAUTER test stands up to 5 kN

NEW: USB interface for data transfer and power supply as standard

Data interface RS-232 as standard

Selectable measuring units: N, kgf, lbf

Peak-Hold function to capture the peak value or Track function for continuous display of measurement

Measuring with tolerance range (limit-setting function): Upper and lower limit adjustable, in pull and push direction. The process is supported by an audible and visual signal

Auto-Power-Off

Internal memory for up to 10 measurement values

Mini Statistics Kit: calculates the average result from up to 10 stored measured values, as well as min., max., n

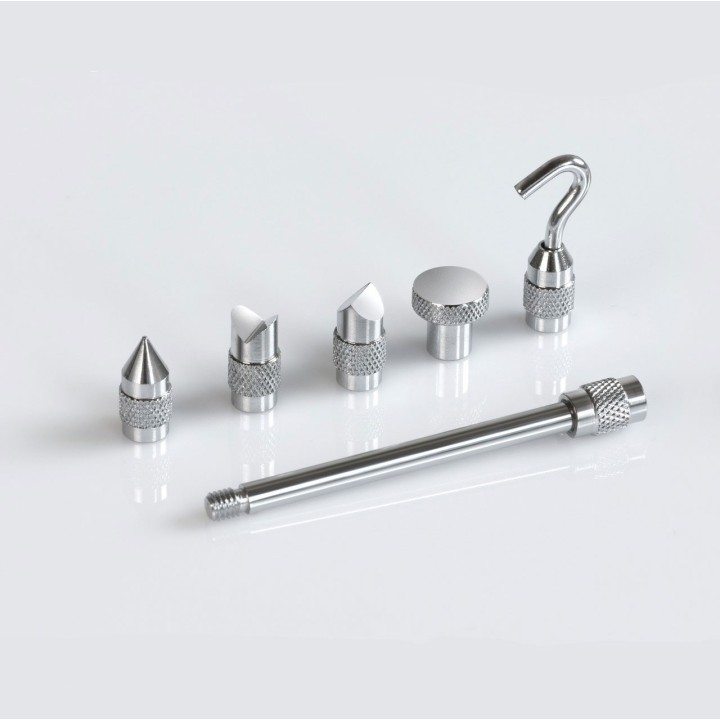

Standard attachments as shown, extension rod: 90 mm, included with the delivery

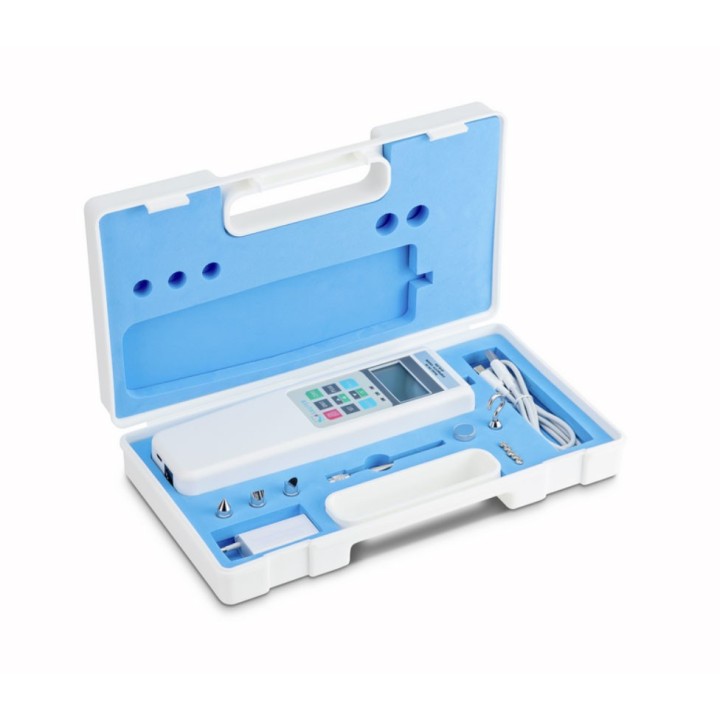

Delivered in a robust carrying case
