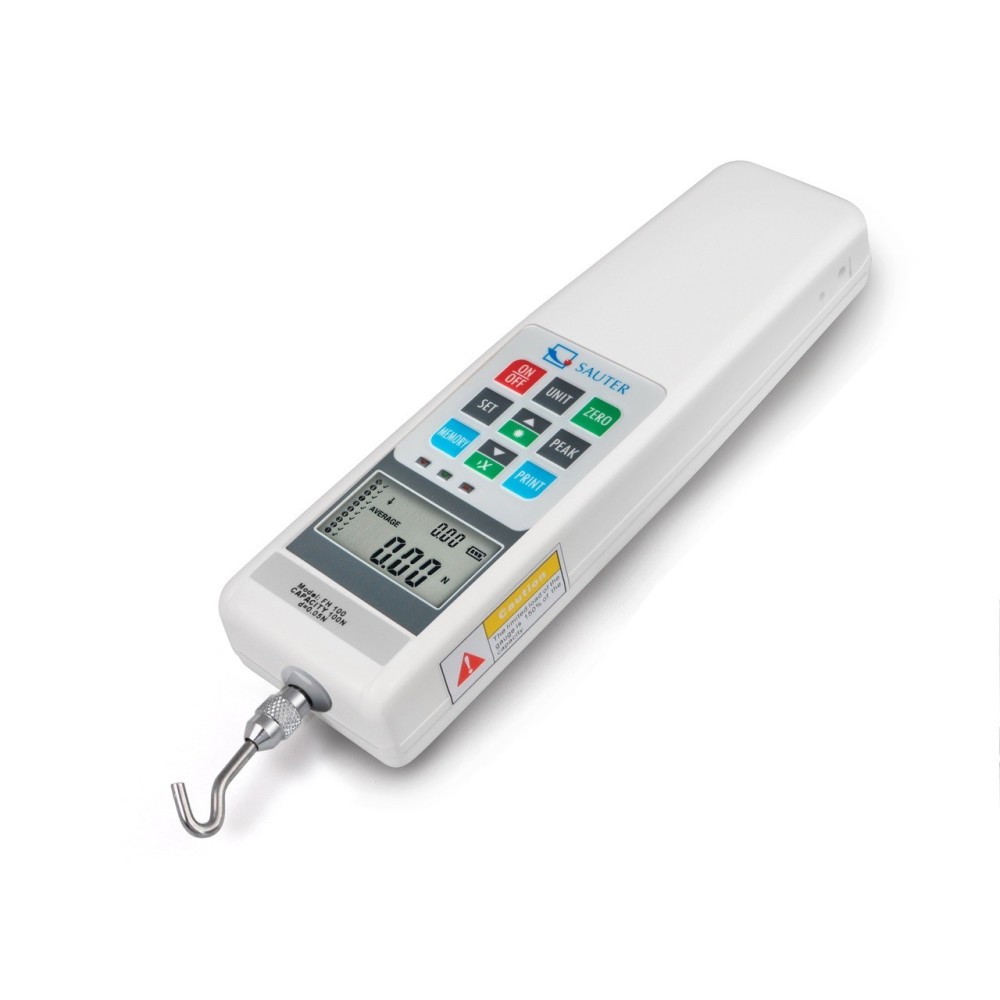

SAUTER FH 5 force gauge with integrated load cell

SAUTER FH 5 force gauge with integrated load cell

Name: SAUTER FH 5 force gauge with integrated load cell
Brand: SAUTER
SKU: FH 5
Price: 531 EUR
Availability: InStock

SAUTER

€590.00 (Save 10%)

€531.00

Tax excluded

Universal digital force gauge for tensile and compressive force measurements with integrated load cell

Technical Data SAUTER FH 5

Measuring range force [Max] (N)	5 N
Readability force [d] (N)	0,001 N
Tolerance (% of [Max])	0,5%
Measuring head measuring frequency	2 kHz
Supplied power supply	Accu & Power supply
Memory function
Statistic function
Limit-setting function
Hold function
Peak function
Material housing	plastic
Dimensions completely mounted (W×D×H)	240×66×36 mm
Net weight approx.	0,60 kg
Interfaces	RS-232 standard, USB-Device

Turnable display with backlight

Can be mounted on all SAUTER test stands up to 5 kN

NEW: USB interface for data transfer and power supply as standard

Data interface RS-232 as standard

Selectable measuring units: N, kgf, lbf

Peak-Hold function to capture the peak value or Track function for continuous display of measurement

Measuring with tolerance range (limit-setting function): Upper and lower limit adjustable, in pull and push direction. The process is supported by an audible and visual signal

Auto-Power-Off

Internal memory for up to 10 measurement values

Mini Statistics Kit: calculates the average result from up to 10 stored measured values, as well as min., max., n

Standard attachments as shown, extension rod: 90 mm, included with the delivery

Delivered in a robust carrying case
