SAUTER AFH FD Data transmission software

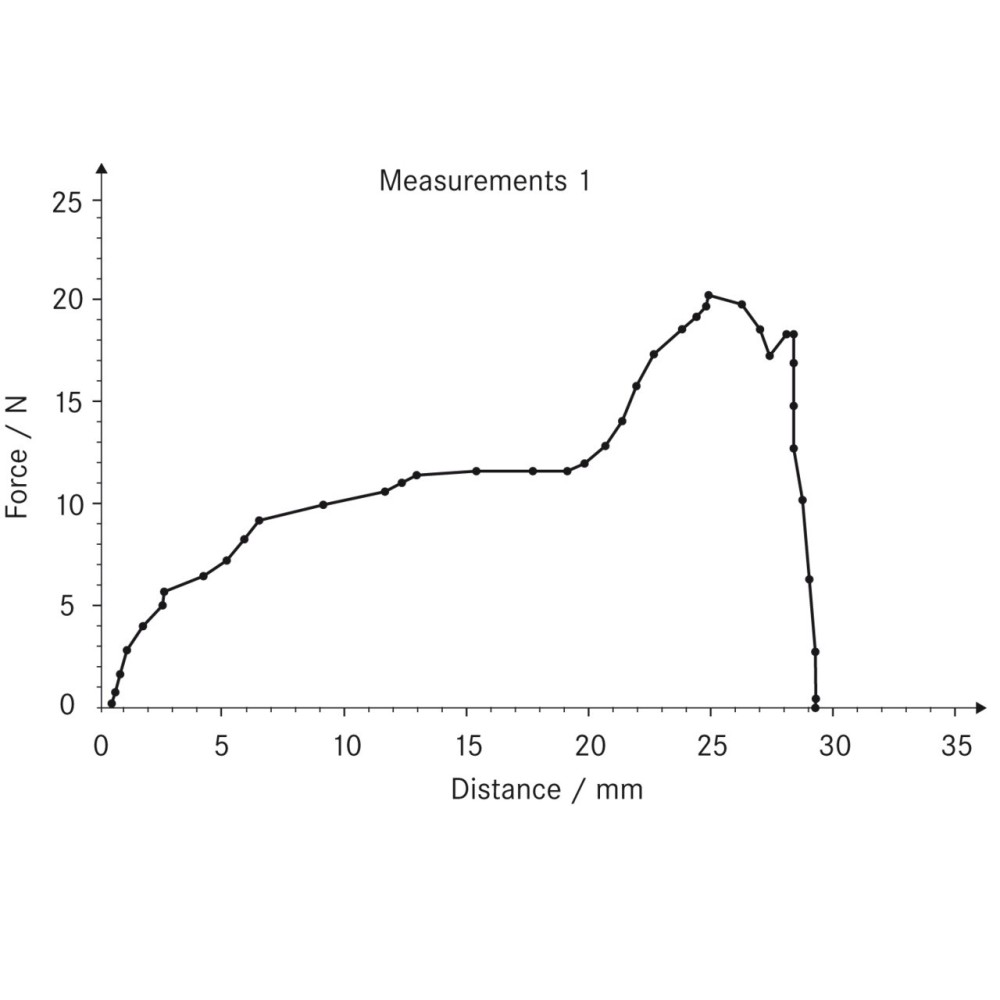

AFH FD software is designed for all applications that require the measurement of forces, depending on the displacement. Typically these are force progression graphs in penetration tests or pullout tests

The program simultaneously requests the measurements from a force measuring device, e.g. FH, as well as a length measuring device, e.g. LB or LD

The measurements from both instruments are transferred continuously to the PC, synchronised by the AFH FD software and exported in the form of a graphic, as well as free data format for simple processing in Microsoft Excel®

Compatible with SAUTER FC, FH, FL

These measuring instruments are usually used with SAUTER test stands, in particular those from the SAUTER TVM-N and TVS range

Further analysis functions:

• - Extension of the test object
• - Tensile and compressive force
• - Endurance testing
• - Archiving the recorded data

Scope of delivery for SAUTER AFH FD:

• - Software AFH FD as downloadlink
• - RS-232 interface cable for LB (LB-A01)
• - User manual

Compatible with operating system: Microsoft Windows 10, 11®
