Software SAUTER AFH FD

AFH-FD

Force-displacement analysis software for testing materials

More details

585,00 €

-10%

650,00 €

Add to wishlist

Description

Force-displacement analysis software for testing materials

  • AFH FD software is designed for all applications that require the measurement of forces, depending on the displacement. Typically these are force progression graphs in penetration tests or pullout tests
  • The program simultaneously requests the measurements from a force-measuring device, e. g. SAUTER FH, as well as a length-measuring device, e.g. SAUTER LB

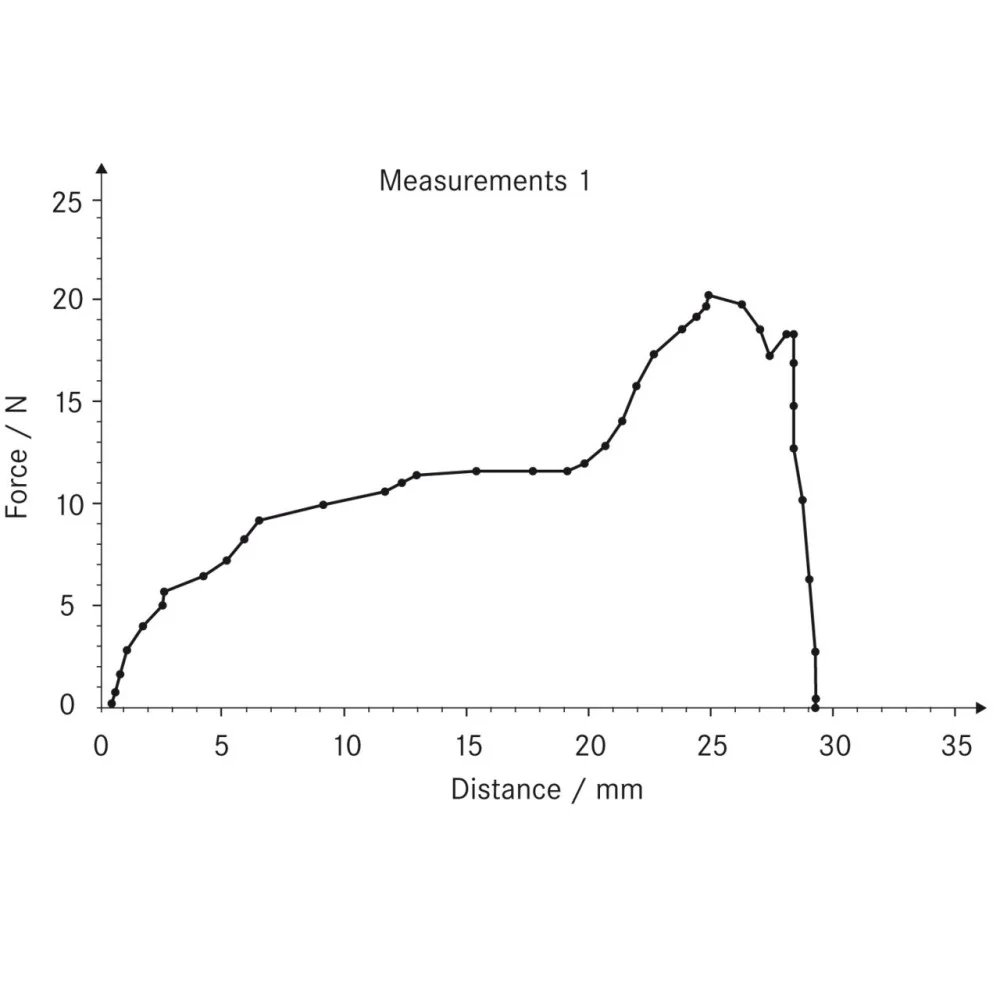

  • The measurements from both instruments are transferred continuously to the PC, synchronised by the AFH FD software and exported in the form of a graphic, as well as free data format for simple processing in Microsoft Excel
  • The software AFH FD is compatible with all devices in the ranges SAUTER FC, FH, FL
  • Other devices are not supported at this time, but may be included on request
  • These measuring instruments are usually used with SAUTER test stands, in particular those from the SAUTER TVM-N range. However, it is also possible to use them with other mechanical testing machines

Further analysis functions:

  • Dimensions of the test object
  • Tensile and compressive force
  • Load test
  • Archiving the recorded data

Scope of delivery SAUTER AFH FD:

  • AFH FD software on DVD
  • User manual
  • Software licence
  • PC connection cable LB-A01 (RS-232 to LB)
  • PC connection cable FH-A01 (RS-232 to FH)

Order example for a complete test system:

  • FH 5K. (Digital force gauge)
  • LB 300-2. (Digital length measuring device)
  • AFH FD (Force-deflection software)
  • TVM 5000N230N.* (Test stand)
  • LB-A02* (Mounting LB on test stand)
  • 2 × AFH 12* (Y-USB converter)
  • AC 04* (Test object holder)
  • 961-163* (Force calibration)
  • 961-150* (Length calibration)

* not necessarily required for operating the AFH FD software

Data recording rate max. 3 Hz (specially in combination with SAUTER FH and SAUTER LB)
