- -10%

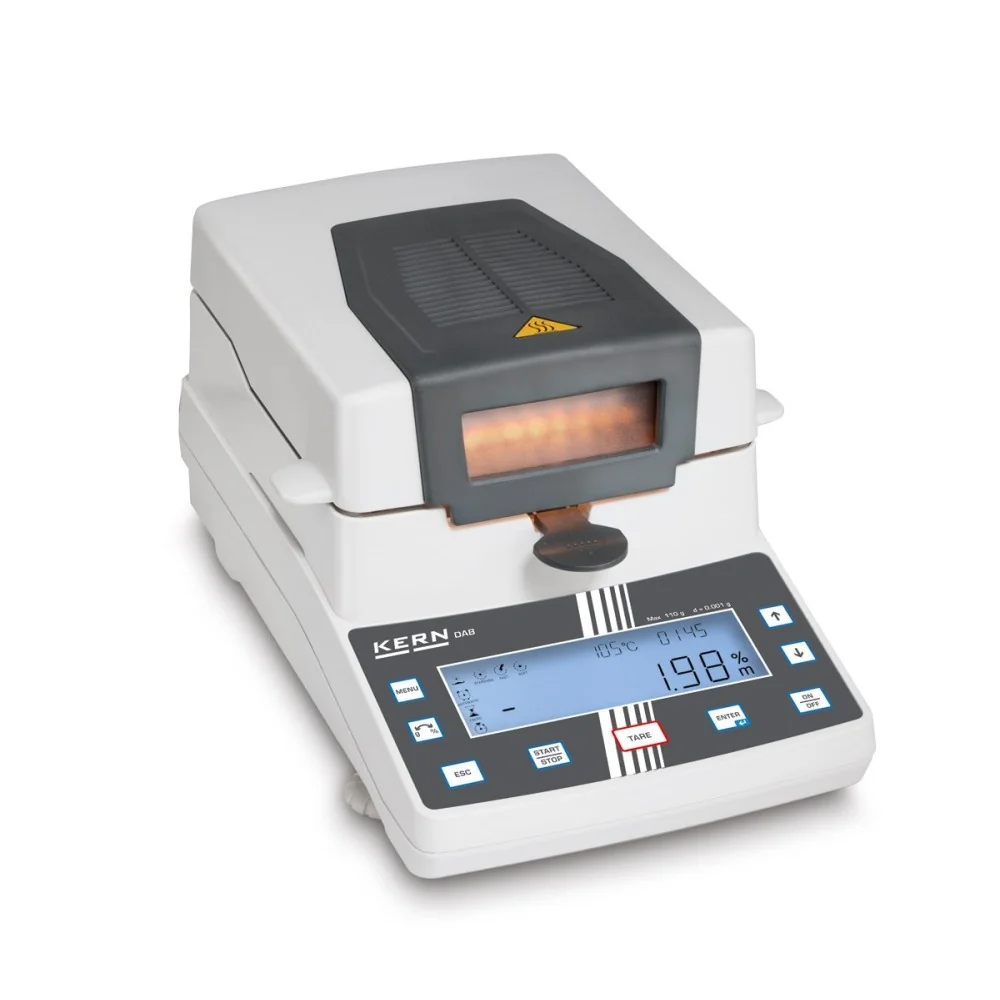

KERN DAB 100-3 Moisture analyser
1,125.00 €Save 10%
1,250.00 €
Tax excluded
with user-friendly graphics display and 15 memories for drying programs
- Backlit LCD display, digit height 14 mm
- Drying process active
- Active heating profile
- Active switch-off criteria
- Previous drying time
- Current temperature
- Unit of the shown result, e.g. moisture [%]
- Interim result in moisture-%
- Halogen quartz glass heater 400 W
- Observation window above the sample, useful during initial setting
- Internal memory for automatic sequence of 15 complete drying processesand 5 drying processes carried out
- The last value measured remains on the display until it is replaced by a new measurement
- 50 sample plates included
- Application handbook: On the internet, you will find a practical application handbook containing many examples, field reports, settings and tips for each KERN moisture analyser
KERN DAB 100-3 Moisture analyser
- Adjusting program (CAL): For quick setting of the balance's accuracy. External adjusting weight required.
- Memory: Balance contains memories, e.g. for tare weights, weighing data, item data, PLU etc.
- Data interface RS-232: To connect the balance to a printer, PC or network
- GLP/ISO log: with weight, date and time. Only with KERN printers, see Accessories
- Weighing units: Can be switched to e.g. nonmetric units at the touch of a key. See balance model.
- Mains part: mains part integrated in the balance. 230V/50Hz Standard type D, if requested also available in standard GB, AUS or USA.
- Strain gauge: An electrical resistor strip that is glued to an elastic deforming body made of aluminium. As the strain gauge is mechanically deformed its resistance value changes, allowing
- 3 years warranty
Particularly user-friendly moisture analyzer with high-quality halogen quartz glass heater
TECHNICAL DATA
| Weighing capacity [Max] | 110 g |
| Readability [d] | 0,001 g |
| Weighing system | Strain gauge |
| Temperature [Min] (°C) | 40 °C |
| Temperature [Max] (°C) | 199 °C |
| Stabilization time | 3 s |
| Units | g, % Humidity, % Dry mass |
| Reproducibility | 0,001 g |
| Linearity | ± 0,003 g |
| Readability moisture [d] (%) | 0,01% |
| Drying modes | Standard drying, Rapid drying, Gentle drying |
| Switch-off criteria | time controlled, automatic, manual |
| Input voltage device / power [Max] | 230 V AC, 50 Hz |
DAB 100-3
Data sheet
- Weighing range [Max]
- 110 g
- Readout [d]
- 1 mg / 0,010 %
- Reproducibility
- 1 mg / 0,010 %
- Weighing plate dimensions
- Ø 92 mm
- Net weight
- 4,9 kg
