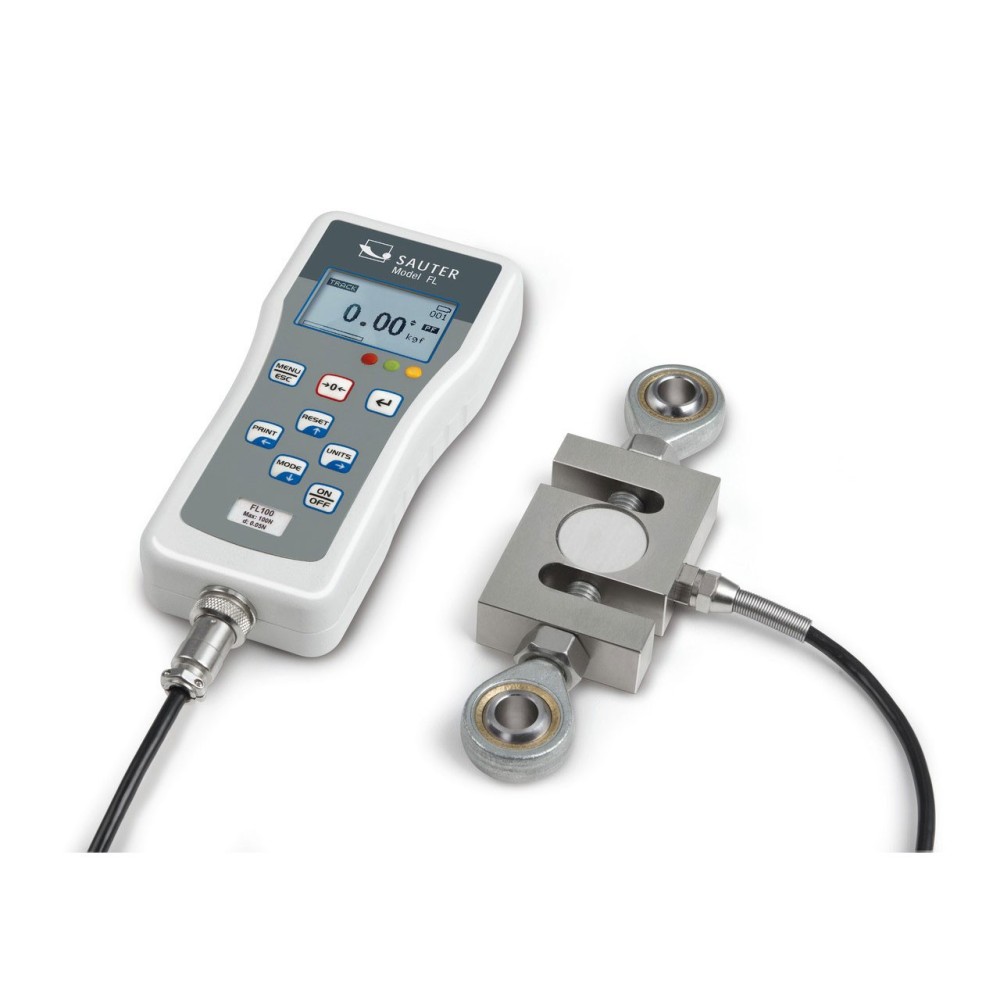

SAUTER FL 2K force gauge with external load cell


SAUTER FL 2K force gauge with external load cell

SAUTER
FL 2K

Powerful digital force gauge with graphic assisted display for tensile and compressive force measurements with external load cell

Technical Data SAUTER FL 2K

Measuring range force [Max] (N) 2,5 kN
Readability force [d] (N) 1 N
Tolerance (% of [Max]) 0,2%
Measuring head measuring frequency 1000 Hz
Number of platforms / channels 1
Supplied power supply Accu & Power supply
Rechargeable battery 4,8 V 750 mA
Memory function
Limit-setting function
Hold function
Peak function
Material housing metal, lacquered
Dimensions completely mounted (W×D×H) 170×75×30 mm
Net weight approx. 0,55 kg
Interfaces RS-232 standard, USB-Device, analogue (0 +/-2V)
Certificate : without Certificate
Hurry! only 5 items left in stock.
€621.00
€690.00
Save 10%
Tax excluded
Quantity

Add to Compare
Add to Wishlist

Premium force gauge with external measuring cell, tension loops included with delivery

Turnable display with backlight

Peak-Hold function to capture the peak value or Track function for continuous display of measurement

Metal housing for durable use in harsh environmental conditions

Can be mounted on all SAUTER test stands starting 1 kN

Capacity display: A bar lights up to show how much of the measuring range is still available

Measuring with tolerance range (limit-setting function): Upper and lower limit adjustable, in pull and push direction. The process is supported by a visual signal

Internal memory for up to 500 measurement values

Continuous analogue output: Linear voltage signal in dependence to the load (-2 to +2V)

USB data interface, as standard

Selectable measuring units: N, kN, kgf, ozf, lbf

Delivered in a robust carrying case

: FL 2K
Hurry! only 5 items left in stock.

Specific References

EAN13
4045761138919
