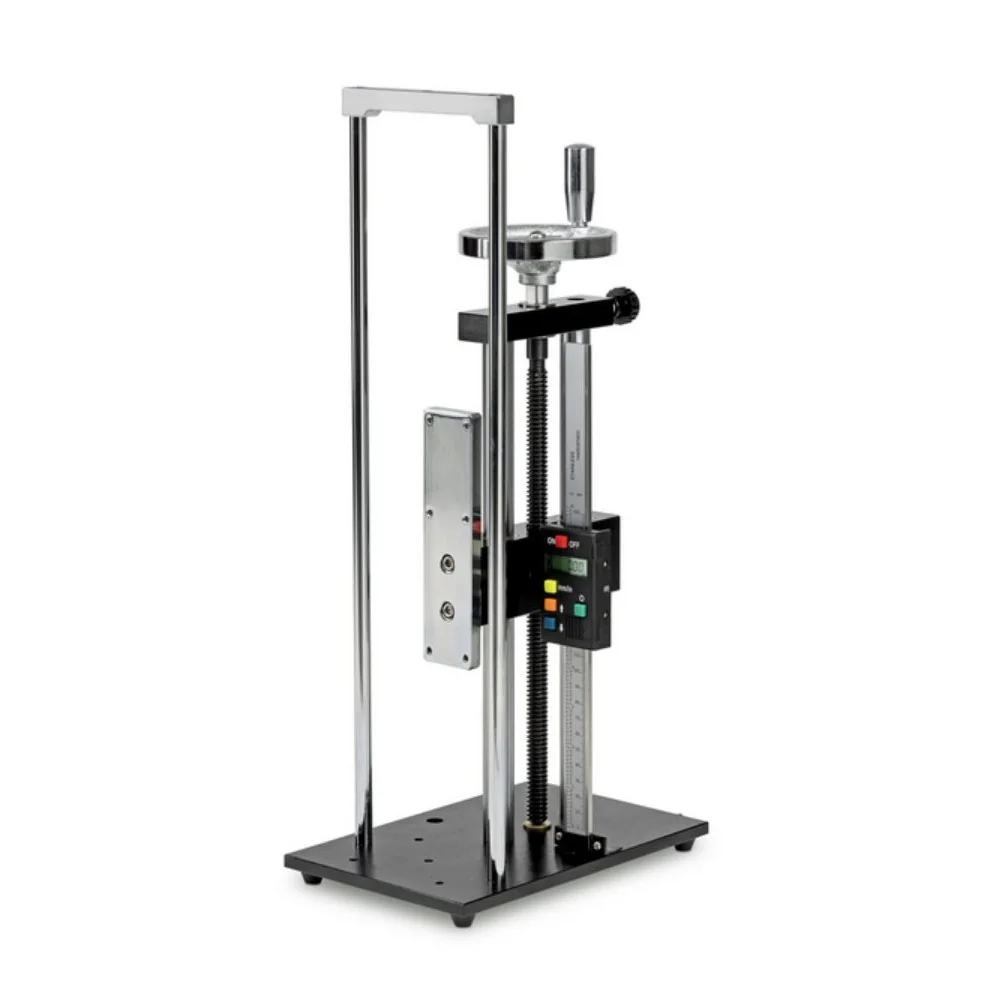

SAUTER TVL Manual test stand

SAUTER TVL Manual test stand

SAUTER
TVL

Manual test stand for highly accurate tensile and compressive force measurements, with length measurement

Generated force [Max] 1 kN
Traverse distance [Max] 230 mm
Type of drive manual crank handle
Length measuring device Length measuring device with display
Material housing metal, lacquered
Dimensions completely mounted (W×D×H) 151×234×465 mm
Travel distance per knob rotation (stroke per one turn) 3 mm
Hurry! only 15 items left in stock.
€405.00
€450.00
Save 10%
Tax excluded
Quantity

Add to Compare
Add to Wishlist

SAUTER TVL Manual test stand

for highly accurate tensile and compressive force measurement with length measurement

  • For vertical and horizontal use
  • Precise measurement results
  • High level of security with repeated measurements
  • Large base plate with various holes for fixture mountings
  • can be combined with all devicesCan be used for force gauges up to 500 N
  • Digital length meter
    • - Measuring range: 230 mm
    • - Readout: 0,01 mm
    • - Zero setting possible
    • - Pre-length can be set manually
  • Max travel from base plate: 297 mm
  • Travel distance per knob rotation (one stroke): 3,1 mm
  • Dimensions (W×D×H): 151 x 234 x 465 mm
: TVL
