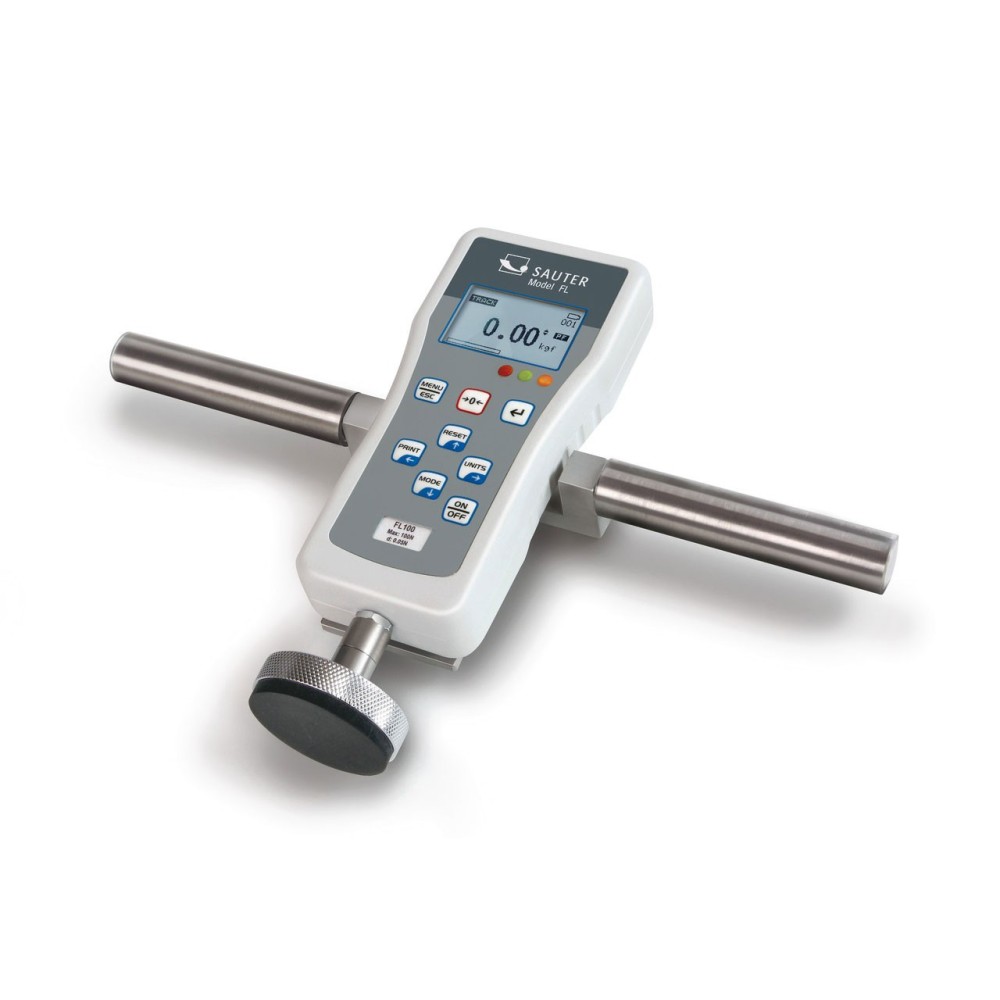

SAUTER FL 1KG digital Gravestone Tester

SAUTER FL 1KG digital Gravestone Tester

SAUTER
FL 1KG

SAUTER FL 1KG digital Gravestone Tester for professional applications

Technical Data SAUTER FL 1KG

Measuring range force [Max] (N) 1 kN
Readability force [d] (N) 0,5 N
Tolerance (% of [Max]) 0,2%
Measuring head measuring frequency 1000 Hz
Number of platforms / channels 1
Supplied power supply Accu & Power supply
Rechargeable battery 4,8 V 750 mA
Memory function
Limit-setting function
Hold function
Peak function
Material housing metal, lacquered
Dimensions completely mounted (W×D×H) 175×75×30 mm
Net weight approx. 1,8 kg
Interfaces RS-232 standard, USB-Device, analogue (0 +/-2V)
Certificate : without Certificate
Hurry! only 5 items left in stock.
€729.00
€810.00
Save 10%
Tax excluded
Quantity

For testing the stability of gravestones in accordance with VSG 4.7

Ideal for the documented certification of specialist stone-cutter companies

Internal memory for up to 500 measurement values

Ideal for serial measurements where the data is then transferred to a PC (in combination with the optional AFH FAST software)

Rechargeable battery with long operating time (significantly more than 8 hours), so it is possible to use the device for a whole working day, in mobile mode

Function to set limits: This is where you can program a stability limit value. If this limit value is exceeded, the device emits a visual signal. In this way, the measuring result does not need to be read off each time

Stainless steel handle with rubber covering for secure handling

Wide pressure plate with foam rubber surface, so that the tombstone does not get scratched when force is applied

Maximum force indication (Peak Hold): The device automatically keeps the maximum force displayed

Robust metal housing for permanent use under harsh environmental conditions

Scope of delivery:

- 1× FL 500/FL 1K

- 1× AE 08

- 1× AFH 04

: FL 1KG
Hurry! only 5 items left in stock.

Specific References

EAN13
4045761149168
