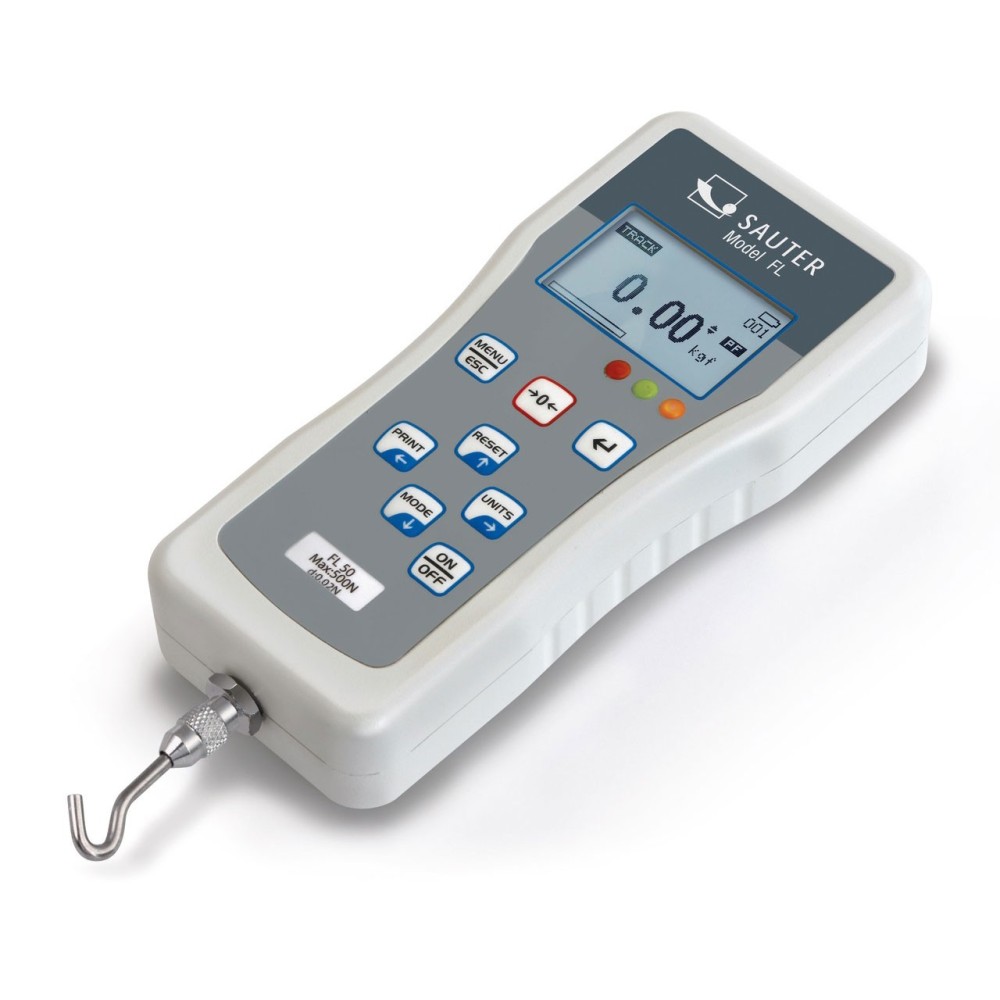

SAUTER FL 10 Digital force gauge

SAUTER FL 10 Digital force gauge

SAUTER
FL 10

Universal digital force gauge with graphics display and integrated measuring cell

Technical Data SAUTER FL 10

Measuring range force [Max] (N) 10 N
Readability force [d] (N) 0,005 N
Tolerance (% of [Max]) 0,2%
Measuring head measuring frequency 1000 Hz
Number of platforms / channels 1
Supplied power supply Accu & Power supply
Rechargeable battery 4,8 V 750 mA
Memory function
Limit-setting function
Hold function
Peak function
Material housing metal, lacquered
Dimensions completely mounted (W×D×H) 215×75×30 mm
Net weight approx. 0,55 kg
Interfaces RS-232 standard, USB-Device, analogue (0 +/-2V)
Certificate : without Certificate
Hurry! only 5 items left in stock.
€513.00
€570.00
Save 10%
Tax excluded
Quantity

Add to Compare
Add to Wishlist

Turnable display with backlight

Peak-Hold function to capture the peak value or Track function for continuous display of measurement

Metal housing for durable use in harsh environmental conditions

Can be mounted on all SAUTER test stands up to 5 kN

Capacity display: A bar lights up to show how much of the measuring range is still available

Measuring with tolerance range (limit-setting function): Upper and lower limit adjustable, in pull and push direction. The process is supported by a visual signal

Internal memory for up to 500 measurement values

Continuous analogue output: Linear voltage signal in dependence to the load (-2 to +2V)

USB data interface, as standard

Standard attachments: as shown

Selectable measuring units: N, kN, kgf, lbf

Delivered in a robust carrying case

: FL 10
Hurry! only 5 items left in stock.

Specific References

EAN13
4045761138841
