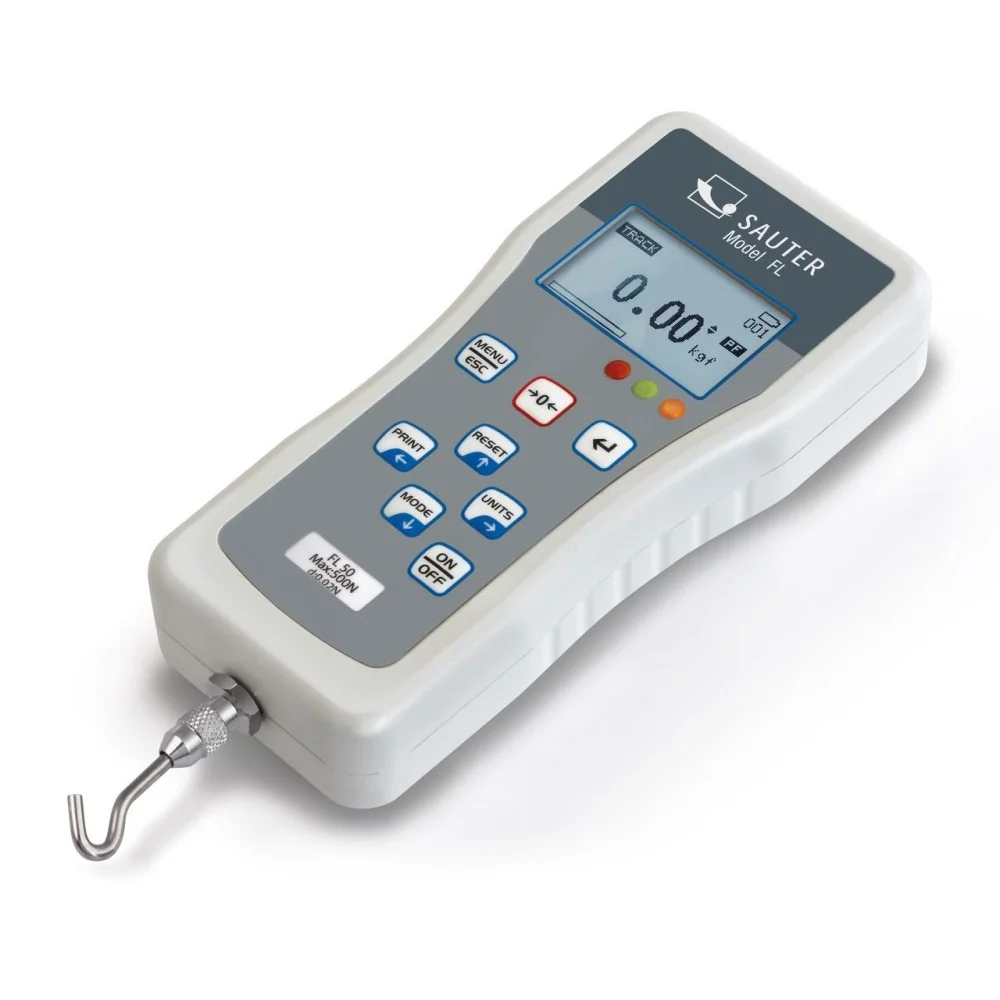

SAUTER FL 200 Digital force gauge

Name: SAUTER FL 200 Digital force gauge
Brand: SAUTER
SKU: FL 200
Price: 513.00 EUR
Availability: InStock

Brand : SAUTER

Reference : FL 200

Universal digital force gauge with graphics display and integrated measuring cell

Technical Data SAUTER FL 200

Measuring range force [Max] (N)	200 N
Readability force [d] (N)	0,1 N
Tolerance (% of [Max])	0,2%
Measuring head measuring frequency	1000 Hz
Number of platforms / channels	1
Supplied power supply	Accu & Power supply
Rechargeable battery	4,8 V 750 mA
Memory function
Limit-setting function
Hold function
Peak function
Material housing	metal, lacquered
Dimensions completely mounted (W×D×H)	215×75×30 mm
Net weight approx.	0,55 kg
Interfaces	RS-232 standard, USB-Device, analogue (0 +/-2V)

Guarantee safe checkout

Turnable display with backlight

Peak-Hold function to capture the peak value or Track function for continuous display of measurement

Metal housing for durable use in harsh environmental conditions

Can be mounted on all SAUTER test stands up to 5 kN

Capacity display: A bar lights up to show how much of the measuring range is still available

Measuring with tolerance range (limit-setting function): Upper and lower limit adjustable, in pull and push direction. The process is supported by a visual signal

Internal memory for up to 500 measurement values

Continuous analogue output: Linear voltage signal in dependence to the load (-2 to +2V)

USB data interface, as standard

Standard attachments: as shown

Selectable measuring units: N, kN, kgf, lbf

Delivered in a robust carrying case

Reference : FL 200

Hurry! only 5 items left in stock.

Specific References

EAN13: 4045761138889
